Starrett Crystal Pink Granite Base Comparator Stand Without Indicator - Grade A, 9-1/4" Maximum Vertical Capacity, 8" x 12" x 2" Base, 5" Throat Depth - 653G

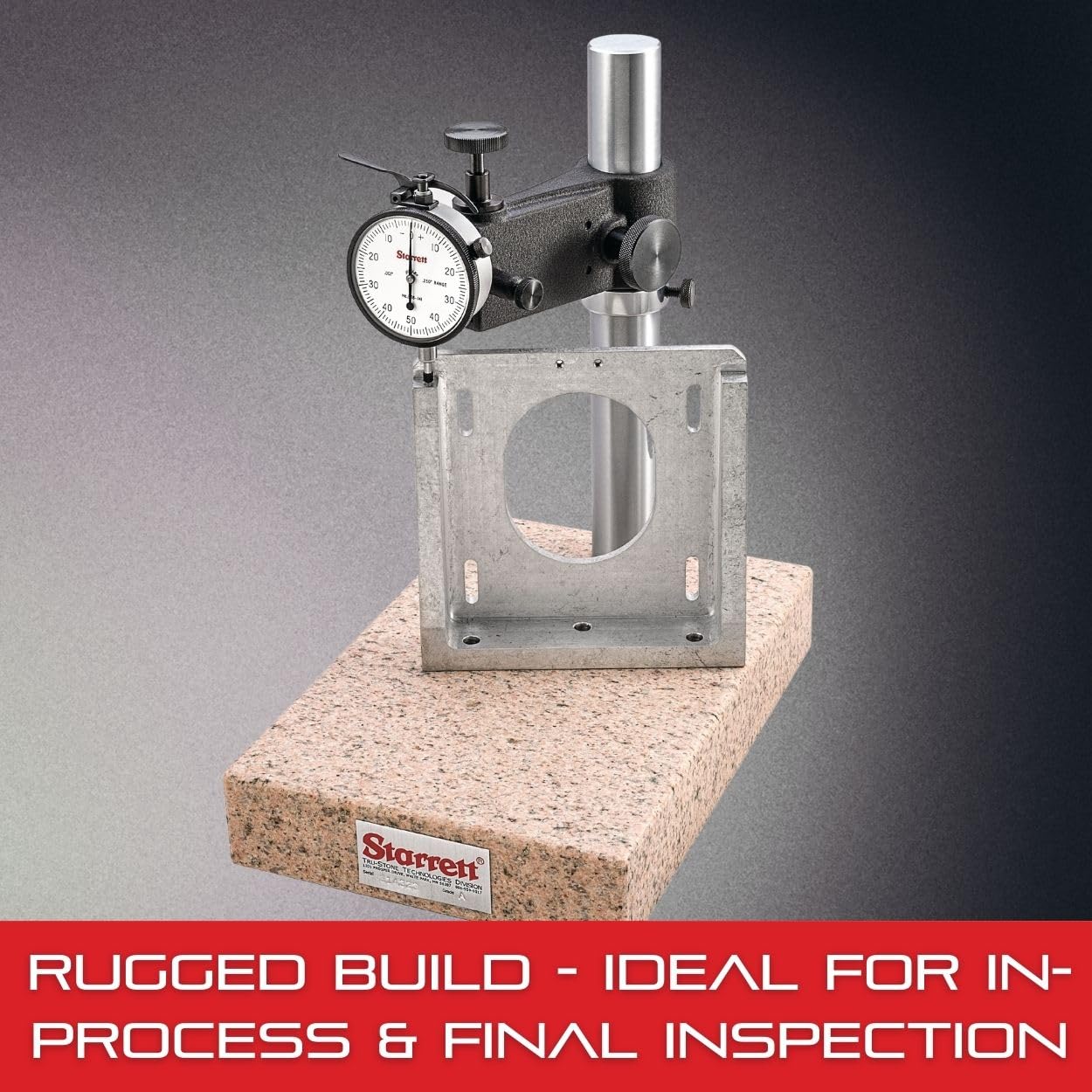

The Starrett 653 Individual Component is a bench-type comparator gage that is ruggedly built for in-process and final inspection work. The dial indicator can be adjusted vertically and locked in any position. A sliding ring with a locking screw below the beam permits swinging the indicator to either side. The ring also acts as a safety device, preventing the beam from accidentally dropping. There is a fine adjustment on the beam for the final indicator setting. The hand-lifting lever on the indicator raises the spindle and releases it to contact the work. The left-hand lever is furnished unless otherwise specified. Both gages have a maximum vertical capacity of 9-1/4" (235mm) and a throat depth of 5" (125mm) and a vertical indicator fine adjustment of up to 1/2" (12.7mm). Post diameter is 1-1/2". These 653G Series have a Starrett Grade A, Crystal Pink Granite base, measuring 8" x 12" x 2" (200 x 300 x 50mm). Its base is finished to an overall tolerance of .0001" (0.0025mm). This is a comparator with a granite base without an indicator.

• Comparator With Granite Base - Our comparator is made with a granite base for stability and comes without an indicator. It's perfect for those who already have an indicator.
• Easy To Use - With a simple left-hand lever, our holders provide an easy way to hold your workpiece in place while you measure it. Both gages have a maximum vertical capacity of 9-1/4" (235mm) and a throat depth of 5" (125mm).
• Safety First - The ring also acts as a safety device, preventing the beam from accidentally dropping. This allows you to swing the indicator to either side, providing added versatility and ensures that your work stays safe and secure at all times.

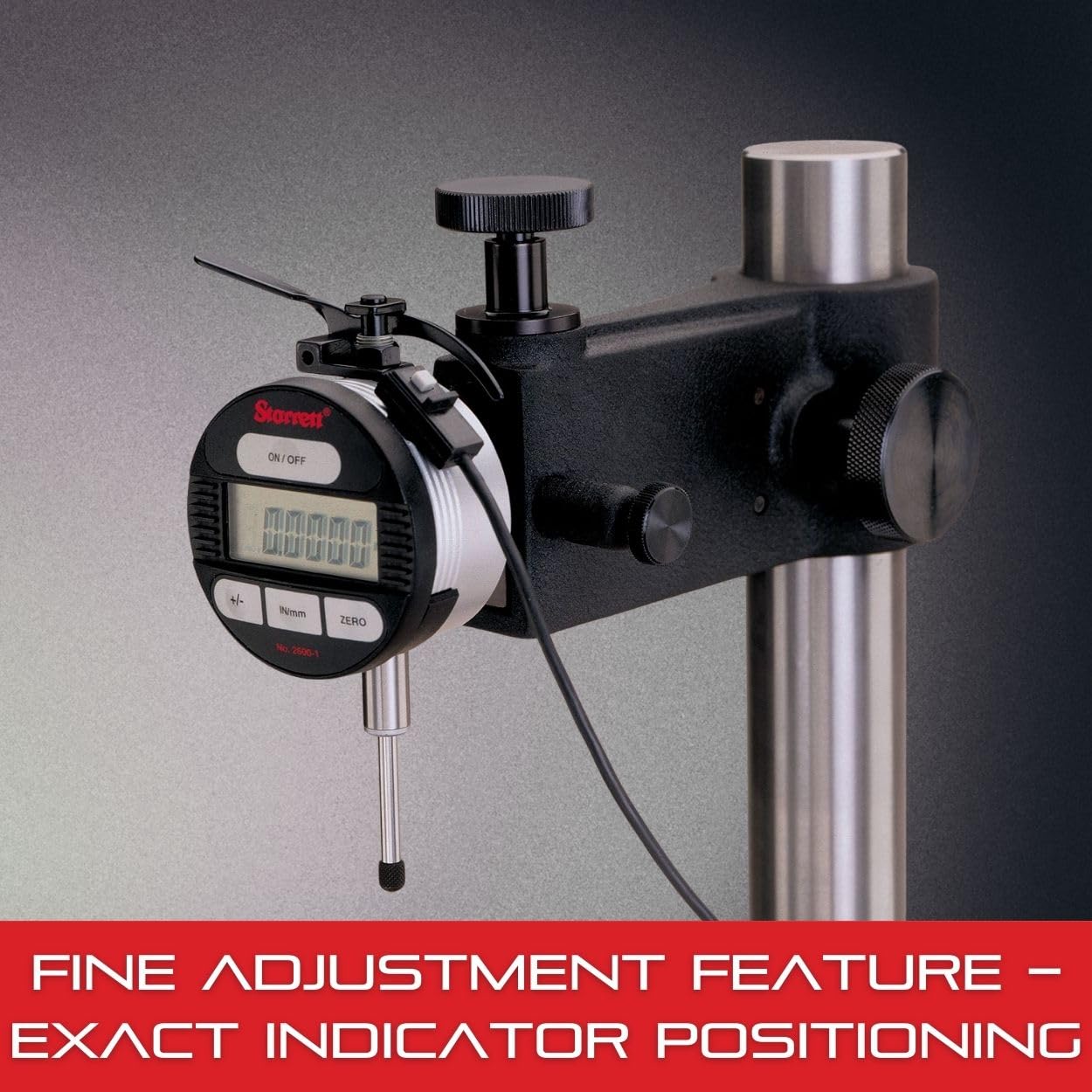

• Fine Adjustment - The comparator can be adjusted vertically and locked in any position, making it easy to get the perfect reading every time.
• The Standard for Excellence - Proudly made in the USA, Starrett combines over 140 years of American heritage and innovation with globally sourced materials to deliver exceptional quality tools and products.
