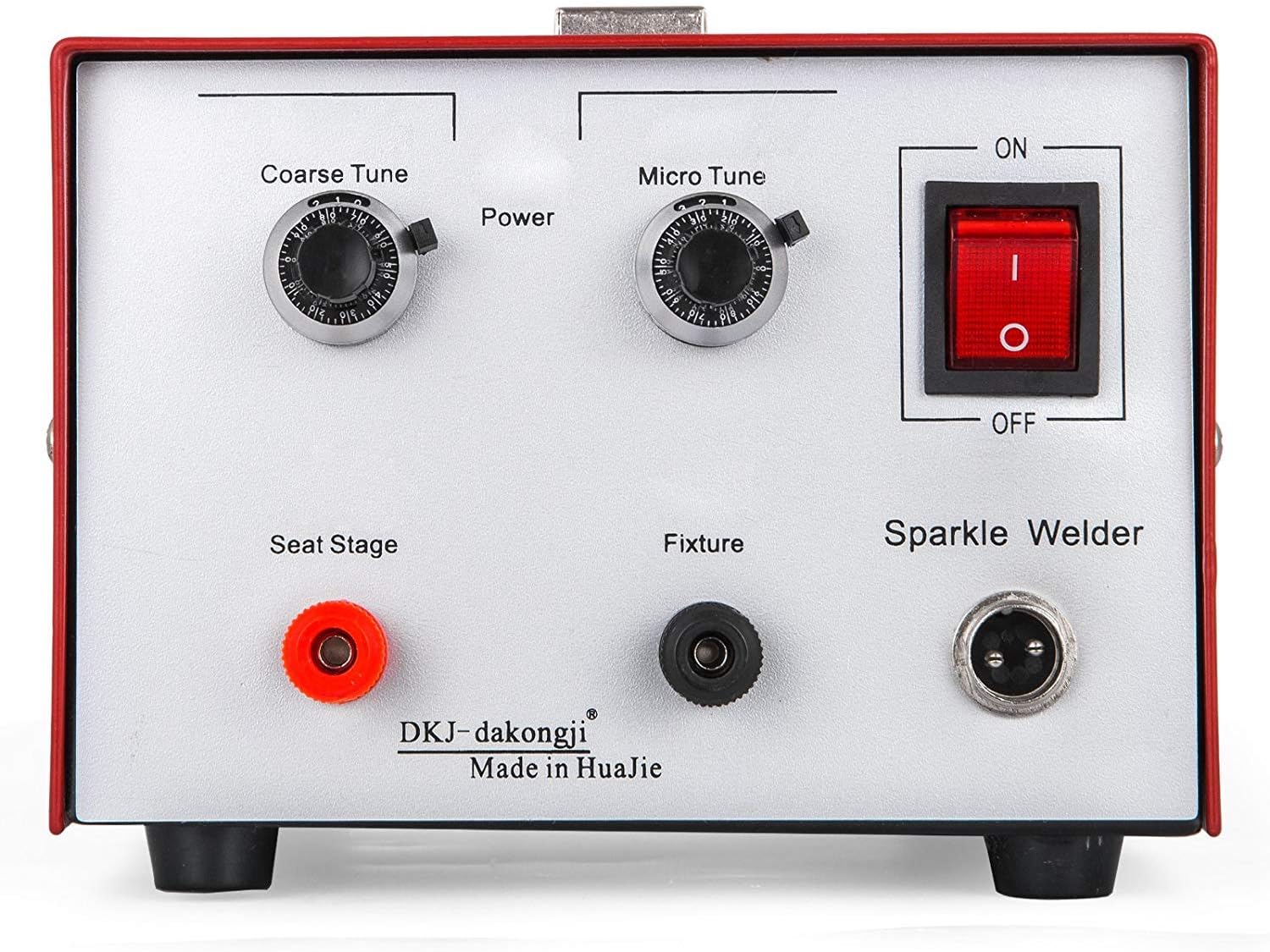

KLUFO Jewelry Spot Welder,2 in 1 Pulse Sparkle Spot Welder Electric Soldering Handheld Jewelry Laser Welding Machine Spot Welder Necklace Gold Silver Platinum Jewelry Moulding Tools(30A)

Description Spot welder can be used for platinum, gold, silver, fast welding, ring ring, melon button, precision wire soldering, direct soldering without solder powder. Precautions: Before using the welder, check that the power supply meets the operating voltage. Do not place the welder in a damp place and keep it dry. When welding, strong light will be released. Please wear protective glasses when welding, do not look directly at the welding parts. When welding, do not hold the workpiece against the tip of the tungsten needle, step on the foot switch, this will cause the machine Short circuit. If the hand is wet, don't touch it. You can't always step on the pedals. Note: Due to the light and screen differences, the color of the item may be slightly different from the display. Specifications: Power supply: AC220V/110V Frequency: 50/60Hz Size: 28.5*17*12.5cm Color: red 30A: Power: 200W Welding current: 0-30A Weldable range: 0.5-1.0mm Weight: 5.5kg 50A: Power: 300W Welding current: 0-50A Weldable range: 0.5-1.3mm Weight: 5.5kg 80A: Power: 400W Welding current: 0-80A Weldable range: 0.5-1.7mm Weight: 6kg If you have any questions, do not hesitate to contact us and send us a message We will contact you within 24 business hours and provide a satisfactory solution.

• Welding distance: The machine can weld 0.5-1mm,0.5-1.3mm, 0.5-1.7mm; Welding current: 0-30A, 0-50A, 0-80A; Power: 200W, 300W, 400W.The pulse current can be easily adjusted with its clear degree. Turning the potentiometer to the right is increasing, turning to the left is decreasing.
• Application: Suitable for welding all precious metals, such as gold, silver, platinum, palladium, etc., is a high level of professional welding.
• Usage: Tighten the nut when connecting the output wire to the output pole, clamp the workpiece with the clamp on the output black line, and close to the tungsten needle. The distance depends on the size and shape of the workpiece.
• Working principle: Adopting the principle of plasma high-frequency discharge, metal welding joints are formed instantly in the molten pool; The welding points are silky smooth and the texture is even.
• Packing Include: 1*Welding Machine, 1* Foot Pedal,1* Power Line,1* Forceps Clamp,1* Tungsten Needle,1* Pedestal.
