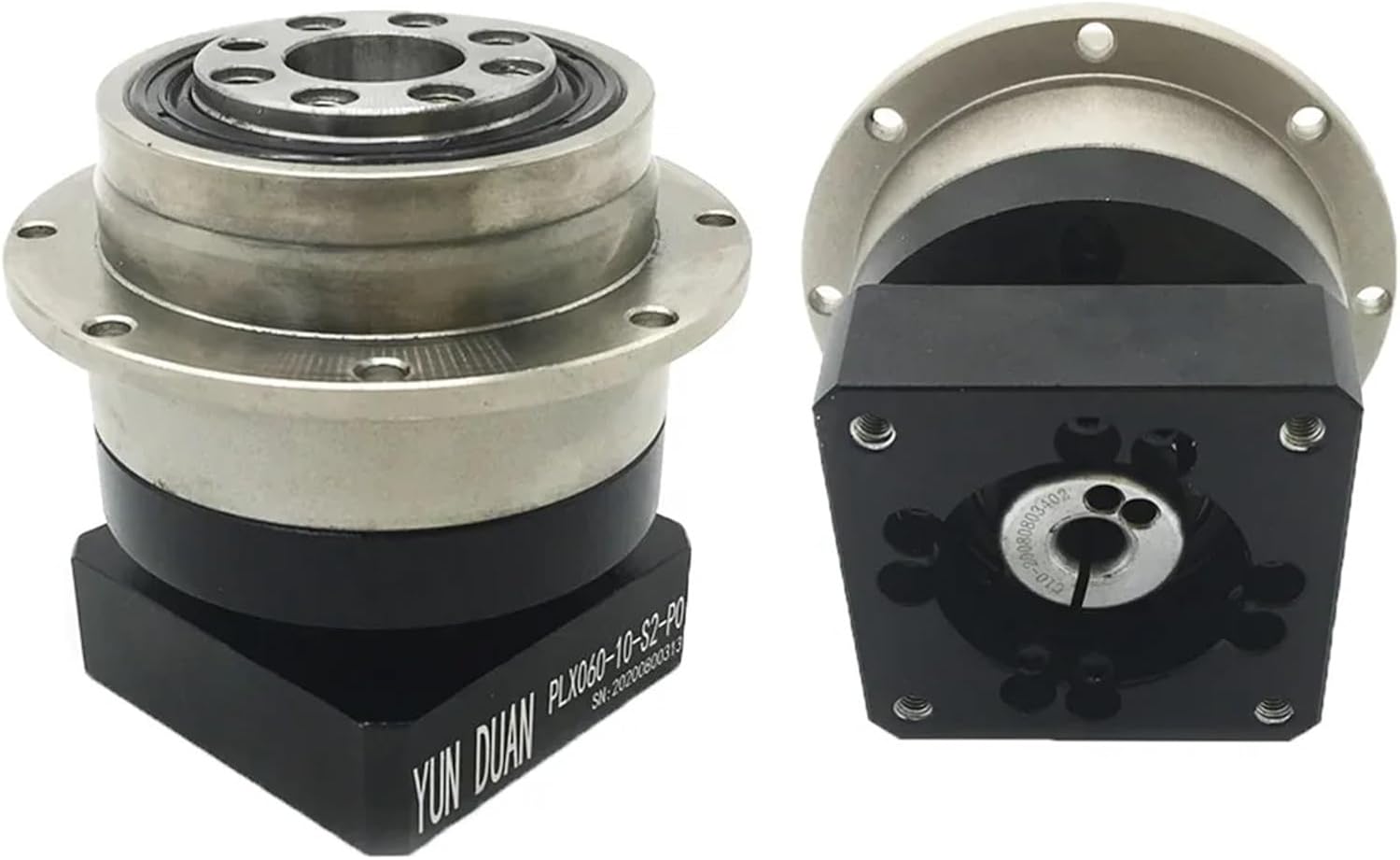

Helical Gear Planetary Gearbox for Nema34 Stepper 80/90mm Servo Motor DC Computerized Numerical Control Round Flange Output Planetary Gearbox Gear 3arcmin(Ratio 70,14mm Input)
Product details
| Management number | 211319290 | Release Date | 2026/04/04 | List Price | $519.10 | Model Number | 211319290 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Gearboxes, Gearheads & Speed Reducers1X Planetary reducer 1X Key4X Install screwFeatures:1. The unique circular flange output mode provides greater installation freedom.2. The body size is shorter and the installation space requirement is low.3. Low clearance, high precision and more precise positioning.4. Double-supported cage type planet carrier structure, high reliability,can adapt to frequent positive and negative rotation.5. The turret is equipped with tapered roller shaft to meet the requirements of heavy load conditions.Model: PLX090Product type: helical gear Planetary reducerInput Shaft: 12.7/16/19mmBacklash Precision: Less than 5 ArcminGear type: Helical GearMaximum Tq:Three times the rated TqEmergency braking Tq:Three times the rated TqMax radial force: 4100NMax axial force : 1025NMax input speed: 6000rpmRated input speed: 3000rpmTransmission efficiency: L1 95% L290%Noise: less than 60dBProtection level:IP65
- Gearboxes, Gearheads & Speed Reducers
- Helical Gear Planetary Gearbox for Nema34 Stepper 80/90mm Servo Motor DC Computerized Numerical Control Round Flange Output Planetary Gearbox Gear 3arcmin
| Model | uSgpfhAf |
|---|---|
| Brand Name | uSgpfhAf |
| Model Name | uSgpfhAf |
| Manufacturer | uSgpfhAf |
