CNC Carbide Inserts SCMT 432 Scmt120408 for Metal Lathe Cutting Steel, SCMT Square Turning Insert, 10 PCS
Product details
| Management number | 211280856 | Release Date | 2026/04/04 | List Price | $17.60 | Model Number | 211280856 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

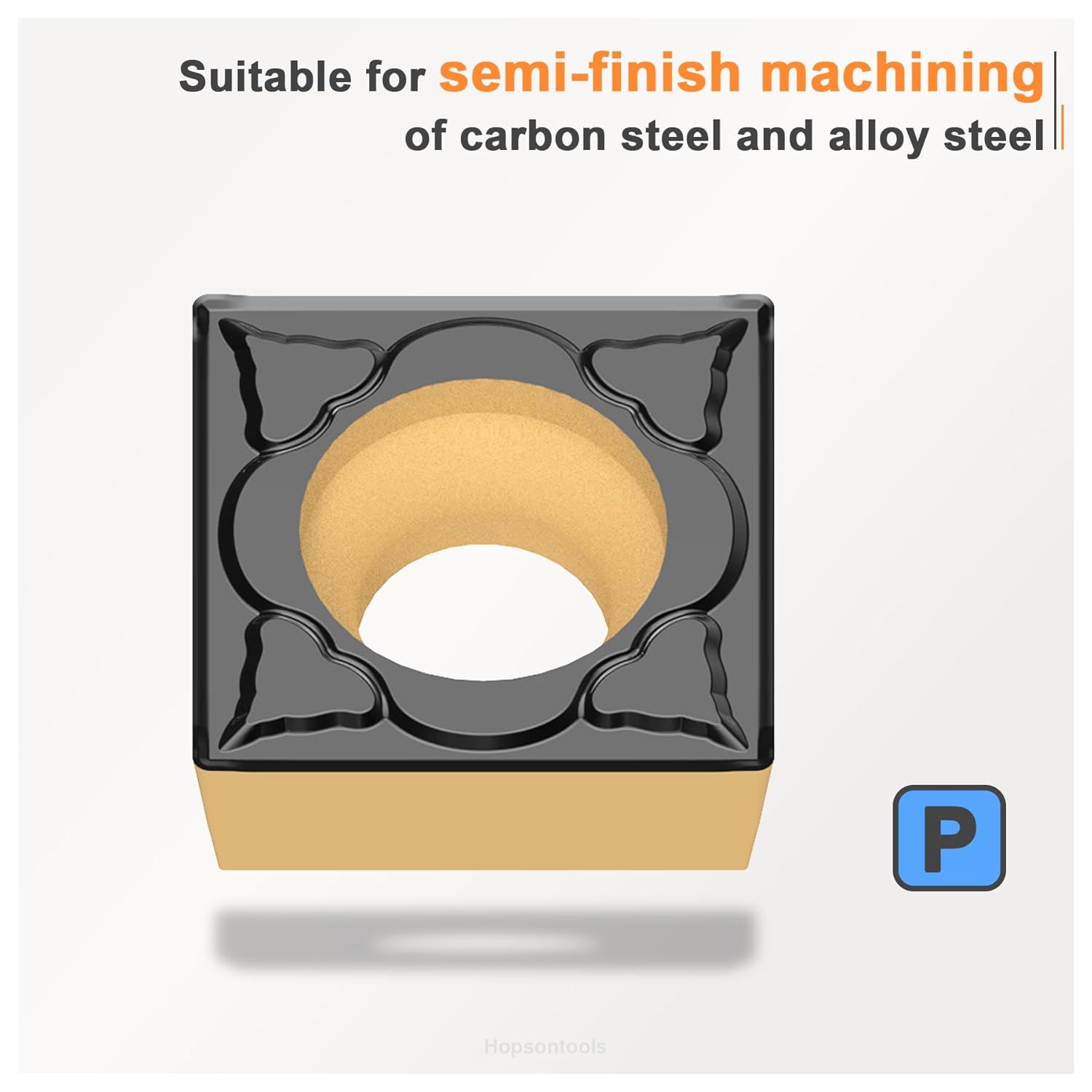

The SCMT120408 (SCMT432) carbide turning inserts are designed for reliable and efficient machining of steel, alloy steel. Manufactured with a robust CVD-coated carbide grade, these inserts deliver excellent wear resistance, thermal stability, and extended tool life.Each insert features a 90° square shape with four cutting edges, making it cost-effective and versatile for various turning applications. With a 12.7mm inscribed circle diameter, 4.76mm thickness, 0.8mm corner radius, and 7° relief angle, the SCMT120408 inserts ensure a precise fit for standard turning tool holders.The optimized geometry provides smooth chip control and stable cutting performance, whether in continuous or interrupted machining operations. Suitable for semi-finishing to roughing, these inserts are a dependable choice for achieving consistent results in demanding lathe applications.Ideal for professional machinists and workshop operations, these inserts are packaged securely for protection and convenient storage.
- Size: SCMT432, ΦIC: 1/2‘’, Thickness(S): .1874'', Dimension(Φd): .2165'', Radius(R): .0315'', Nose Angle: 7°
- Chip breaker MD Suitable for semi-finishing machining of carbon steel and alloy steel, Suitable for processing workpiece with various dimensions and typles
- Improved substrate functions with high stability and excellent resistance to breakage, the materials has improved the tool life and better resistance to plastic deformation by applying composite coating technique with upgraded CVD coating(MTCVD) and thick film-a-AL2O3
- The inserts can be used not only for steel, but for parts of cast iron and exotic alloy, thus meeting the most part of machining requirments. Maintaining tool life and excellent surface when machining at high speed and high feed
- CDBP developed a series of indexable CNC turning inserts for steel with specially designed chipbreaker and CVD coating, which is suitable for varius applications including external turning, boring and end face turning as well as chamfering
| Item Weight | 3.34 ounces |
|---|---|
| Manufacturer | CDBP |
| Item model number | SCMT432MD |
| Package Dimensions | 8.03 x 5.91 x 0.51 inches |
